+/-8V high voltage swing. This significantly improves dynamics and headroom, resulting in a more accurate sound that is true to the recording.

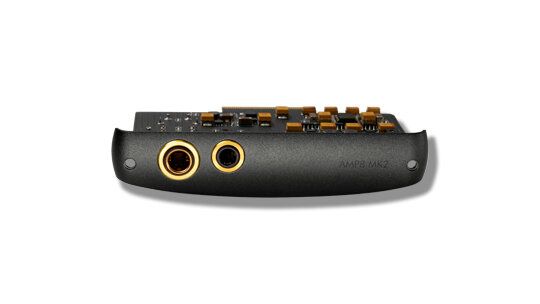

AMP8MK2 is dedicated to the DX240 and features both a high voltage and current output. High current output is very useful for low impedance multi drivers in-ear monitors.
Low VCE transistors are utilized and are manually sorted and paired, providing better consistency and linearity. The low VCE also expands the linearity range.
The transistors used on the buffer stage have a 2000mA output current rating, which are the same as the AMP11 MK2 transistors, which allows the AMP8MK2 to drive IEMs and headphones that require high current, with ease.
ERO file capacitors are used to maintain extremely high quality sound.
A Pentaconn 4.4mm balanced output port is used and with the large contact area of this socket, resistance is lowered achieving better current transmission, equating to better resulting sound.
