Model

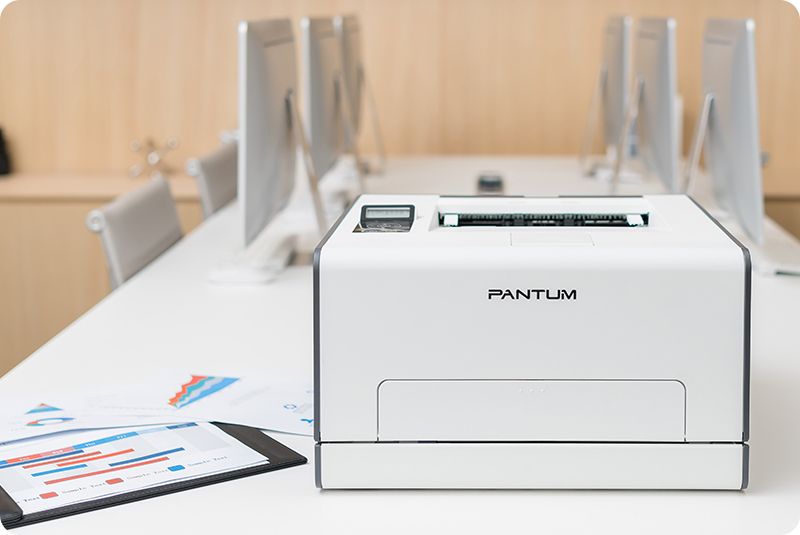

Model： CP2100DW
Print Specification
Print speed(A4/LTR) A4：20ppm、LTR：21ppm
Duplex print speed A4/LTR：6ppm
First print out time Mono：10s、Color：12s
Printer language GDI
Processor speed 500MHz
Memory DDR3L 512MB
Hard disk SPI NAND 128MB
Control panel 2-line LCD
Recommended Monthly Page Volume 150-1500pages
Maximun Monthly duty cycle 30000pages
Auto Duplex Printing YES
Mobile Printing Airprint、Mopria、PANTUM App、WIFI Direct
Other Printing Functions 1、N in 1 printing
2、Poster printing
3、Watermark printing
4、Booklet printing
5、Print Text As Black
6、Mono printing when color powder is over
7、Seal printing
8、Mute printing
Paper Handling
Paper Input Capacity Standard：250 pages
Multipurpose：1 page
Maximum：250+1pages
Paper Output Capacity Standard：100pages
Maximum：100pages
Paper Output Detection YES
Media type Thin paper: 60~70g (excluding 70g);
Plain paper 1: 70~90g (excluding 90g);
Plain paper 2: 90g-105g (including 90g, including 105g);
Thick paper: 105~130g (excluding 105g and 130g);
Thick paper 2: 130g-176g (including 130g and 176g);
Thick paper 3: 176g-200g (including 200g);
Envelopes/Cards/Labels/Transparency
Media Size A4、 Letter、 Legal、 Folio、 Oficio、 JIS B5、 ISO B5、 Executive、 Statement、 A5、big 16K（210mm×285mm）、16K（185mm×260mm）、big 32K（203mm×140mm）、32K（184mm×130mm）、 A6、 No.10 Env、 Monarch Env、 DL Env、 C5 Env、 C6 Env、 Yougata4、 Younaga3、 Nagagata3、 Yougata2、 ZL Env、 Postcard、B6、 Japanese Postcard
Customize：96x148mm~216x356mm
Media Weight Standard：60g~105g/㎡
Multipurpose：60g~200g/㎡
Duplex printing：70g~105g/㎡
General
Machine Dimension（D*W*H） 401*400*225
Machine Package Dimension（D*W*H） 566*512*339
Printer Net Weight 15.3 Kg (with printer and starter cartridge)
Printer Gross Weight 16.3 Kg
Printer Gross Weight(with package) 18.1 Kg
Cartridge Dimension（D*W*H） 292*63*64mm
Cartridge Package Dimension（D*W*H） 395*120*123mm
Cartridge Net Weight 0.675 Kg/pc
Cartridge Gross Weight 0.92 Kg/pc
Connectivity USB2.0
10/100 Base-Tx
WiFi(2.4G)
Power 110V Model：AC100-127V(±10%),50/60Hz(±3Hz)，8A
220V Model：AC220-240V(±10%),50/60Hz(±3Hz)，4A
Power Consumption Print Average：≤380W
Standby：＜5W
Dormant：＜2W
Off：＜0.5W
Energy Star Energy Star 3.0
Noise Standby：≤30dBA
Print：≤54dBA
Mute：≤50dBA
Print Environment Operating Temperature：10～32℃
Relative Humidity：20%~80%RH
Altitude ≤3000m
Operating System Windows：Windows XP（x86）、Windows 7（x86/x64）、Windows 8.1（x86/x64）、Windows 10（x86/x64）、Windows 11（x64）、Server 2008、Server 2008 R2、Server 2012、Server 2012 R2、Server 2016、Server2019
Mac：Mac10.8、10.9～10.15、Mac OS 11、Mac OS 12
Linux：Ubuntu16.04（x86/x64）、Ubuntu18.04（x64）、Ubuntu20.04（x64）、Debian 10.0、Centos 7（32/64 Bit）、Astra Linux Special Edition V1.6、Redhat 8.0.0、Centos 8.2(64 Bit)
Google Chrome：109.0.5414.125-110.0.5481.181
iOS：11.0-16.3
Android：6.0-13.0
Harmony：1.0-3.0
Consumable
Consumable Type One-piece
Starter Cartridge CTL-*2100K：1500pages
CTL-*2100C/CTL-*2100M/CTL-*2100Y：1000pages
CWT-2100：15000pages
Cartridge Model and Yield CTL-*2100K：1500pages ( lock )
CTL-*2100HK：3000pages( lock )
CTL-*2100C/CTL-*2100M/CTL-*2100Y：1000pages(LOCK)
CTL-*2100HC/CTL-*2100HM/CTL-*2100HY：2500pages(LOCK)
CWT-2100：15000pages
Remark
1. The maximum monthly printing load is the number of paper pages that can be output by a certain device in a long-term operation within a month. This metric can be used to compare the durability of other Pantum printers or MFPs.
2. The recommended number of printed pages per month is the range of pages to help customers evaluate product supply based on the average number of pages that customers plan to print on the device each month. Customers are advised that the number of pages printed per month should be within the device's recommended range for optimum performance. In addition, other factors that should be considered include: consumable replacement intervals, paper loading intervals, print speeds, and typical applications of the customer.
3. The capacity of the toner cartridge is the average printing volume of the toner cartridge in the test one-sided (single-sided) mode when printing continuously, according to the ISO/IEC 19798 (color machine) / ISO/IEC 19752 (black and white machine) standard. Actual yields may vary based on device speed, paper size and orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity, among other factors.
4. The specifications of paper input capacity and paper output capacity are affected by the printing environment, paper brand, paper weight, etc., and the actual specifications may vary.
